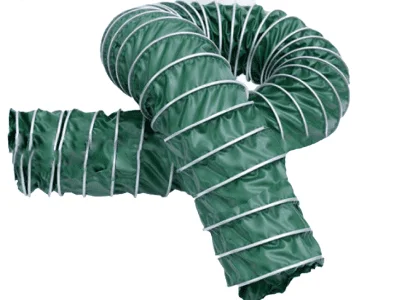

HIGH TEMPERATURE
CLIP HOSE - HT-180
Temperature : – 65°C to + 180°C
Structure
Wall made of Single ply green Vinyl coated fibreglass fabric. It is mechanically crimped in a continuous process. Fabric is locked around a coated steel wire by a metal strip formed into a clip. Metal strip acts as a wearstrip and offers outstanding external abrasion resistance.
Characteristics:
Tough and extremely flexible hose, Compressible, good resistance to high temperatures and chemicals.
Application
Automotive, Brick Kilns, Cold Air Supply, Diesel/Engine Exhaust, Exhaust Systems, Flame Retardant, Foundries, Garage Exhaust, Heater, Jet Fuel Vapor Venting, Pollution Control, Vehicle Exhaust Systems.
Temperature Resistance
– 65° C to + 180° C
Standard Length
10 Meters
Technical Data
| I.D. (mm) |
Bend Radius |
Compression Ration |
Vacuum (PSI) |
W.P. (PSI) |
|---|---|---|---|---|
| 50 | 2.5 | 5:1 | 11 | 11.2 |
| 63 | 2.5 | 5:1 | 11 | 11.2 |
| 76 | 3.0 | 5:1 | 11 | 11.2 |
| 90 | 3.5 | 5:1 | 11 | 11.2 |
| 102 | 3.5 | 5:1 | 9 | 10 |
| 115 | 3.5 | 5:1 | 9 | 10 |
| 127 | 4.5 | 6:1 | 6 | 7 |
| 152 | 4.5 | 8:1 | 6 | 7 |
| 165 | 5.5 | 8:1 | 6 | 6 |
| 180 | 5.5 | 8:1 | 5 | 6 |
| 203 | 5.5 | 8:1 | 5 | 6 |
| 254 | 5.5 | 8:1 | 5 | 5 |
| 305 | 5.5 | 8:1 | 5 | 5 |
