Flexaflexhoses

HIGH TEMPERATURE CLIP HYPALON - 175°C

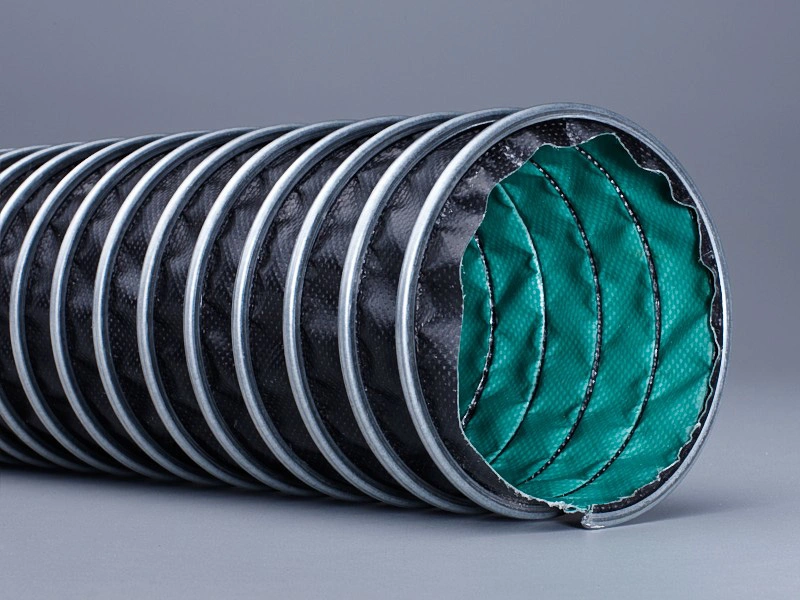

Clip Hypalon

Structure

Light weight and very flexible Hypalon® ducting

Material

2-ply, with PTFE foil inside
with stainless steel clip profile
with abrasion protection profile

Properties

Good temperature, UV and ozone resistance, excellent chemical resistance, outer wear strip, flame retardant and excellent axial compressibility, with good mechanical strength.

Temperature range

-40°C up to 175°C

Colour

External: Black,
Internal: Green

Std. Length

External: Black,
Internal: Green

Applications

Suction of hot or cold fumes, gases or dust in all fields of industry

Specifications

📊 All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances.

⚠️ Max. operating pressures apply only for short periods. We reserve the right to make technical changes and color deviations.

📏 All technical data are subject to dimensional tolerances of ± 0.5%.

📦 Further diameters available upon bulk order request.
