PNEUMATIC TUBE AND ONE TOUCH FITTINGS
Structure
Polyurethane (PU) Tubing Transparent / Blue / Yellow / Black,
Working Pressure
10kg/cm2
Sizes
O.D
OD Tolerance
± 0.1mm
Applications
Pneumatic tube and One touch fittings for all types of pneumatic cylinders - directional control valves, solenoid valves and other valves - Air preparation units like filter, regulator and lubricators - Pneumatic control panels - All compressed air lines, all machineries controlled by pneumatic systems - pneumatic circuits in any industry.

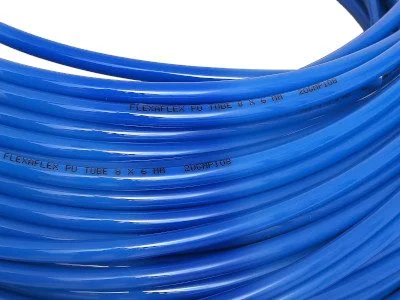

PU Tubing

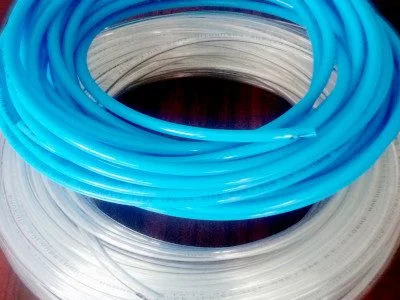

PU Tubing

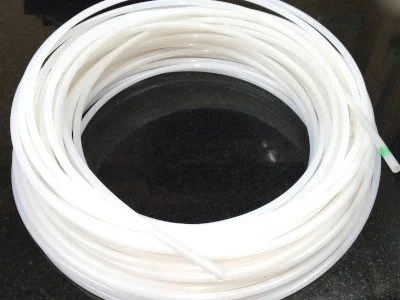

Nylon Tubing

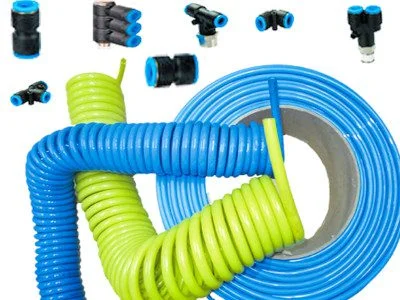

PU Spiral
Technical Data
PU Tubing
| ID x OD (mm) | Working Pressure (kg/cm2) | Standard Length (m) |
|---|---|---|
| 2 X 4 | 10 | 100 Mtrs |
| 2.5 X 4 | 10 | 100 Mtrs |
| 3 X 5 | 10 | 100 Mtrs |
| 4 X 6 | 8 | 100 Mtrs |
| 5 X 8 | 12 | 100 Mtrs |
| 5.5 X 8 | 10 | 100 Mtrs |
| 6 X 8 | 8 | 100 Mtrs |
| 6.5 X 10 | 10 | 100 Mtrs |
| 8 X 10 | 5 | 100 Mtrs |
| 8 X11 | 7 | 100 Mtrs |
| 8 X 12 | 10 | 100 Mtrs |
| 9 X 12 | 8 | 100 Mtrs |
| 10 X 12 | 6 | 100 Mtrs |
| 10 X 14 | 8 | 100 Mtrs |
| 12 X 16 | 6 | 100 Mtrs |
PU Spiral
| ID x OD (mm) | Working Pressure (kg/cm2) | Standard Length (m) |
|---|---|---|
| 4 X 6 | 8 | 3 / 5 / 10/ 15 Mtrs. |
| 5 X 8 | 12 | 3 / 5 / 10/ 15 Mtrs. |
| 5.5 X 8 | 10 | 3 / 5 / 10/ 15 Mtrs. |
| 6.5 X 10 | 10 | 3 / 5 / 10/ 15 Mtrs. |
| 8 X 12 | 10 | 3 / 5 / 10/ 15 Mtrs. |
| 12 X 16 | 6 | 3 / 5 / 10/ 15 Mtrs. |
Nylon Tubing
| Size O.D(mm) | Size I.D(mm) | Standard Length (m) | Working Pressure (bar) | Tolerances (mm) |
|---|---|---|---|---|
| 4 | 2.5 | 100 | 31 | ± 0.10 |
| 6 | 4 | 100 | 27 | ± 0.10 |
| 8 | 6 | 100 | 22 | ± 0.10 |
| 10 | 8 | 50 | 15 | ± 0.15 |
| 12 | 10 | 50 | 27 | ± 0.15 |
| 16 | 12 | 50 | 19 | ± 0.15 |
