POLYESTER FABRIC HOSE – ANTISTATIC AND FLAME RETARDANT
Structure
Heavy-duty polyester fabric hose, PVC-coated on both sides and reinforced with continuous tough spring steel wire. The hose is flame-retardant and antistatic, with a smooth inner and outer surface that enhances strength and durability.
Temperature range
-20°C to 70°C
Colour

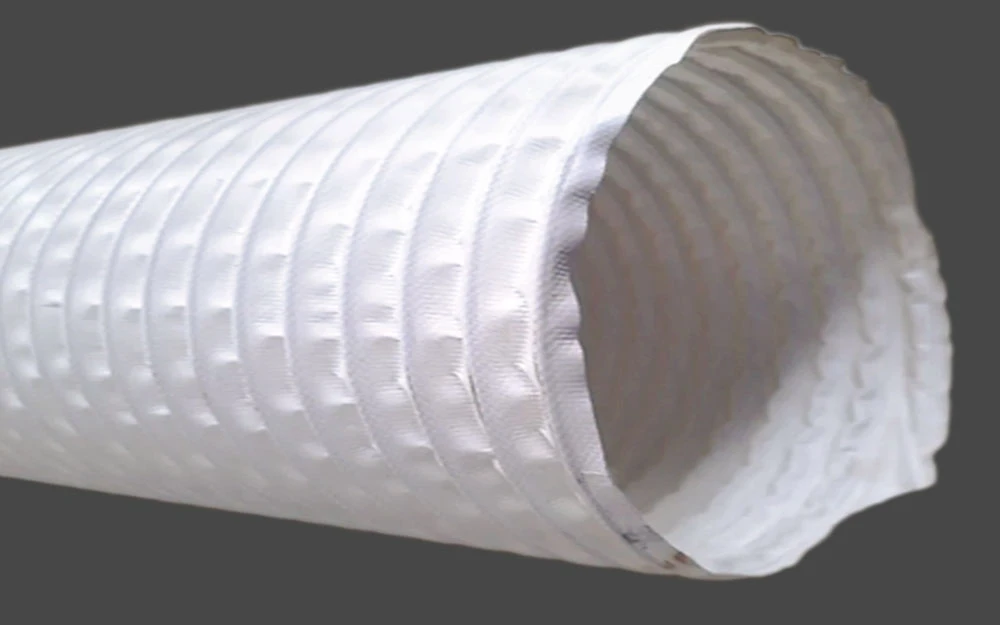

White – Antistatic and Flame Retardant

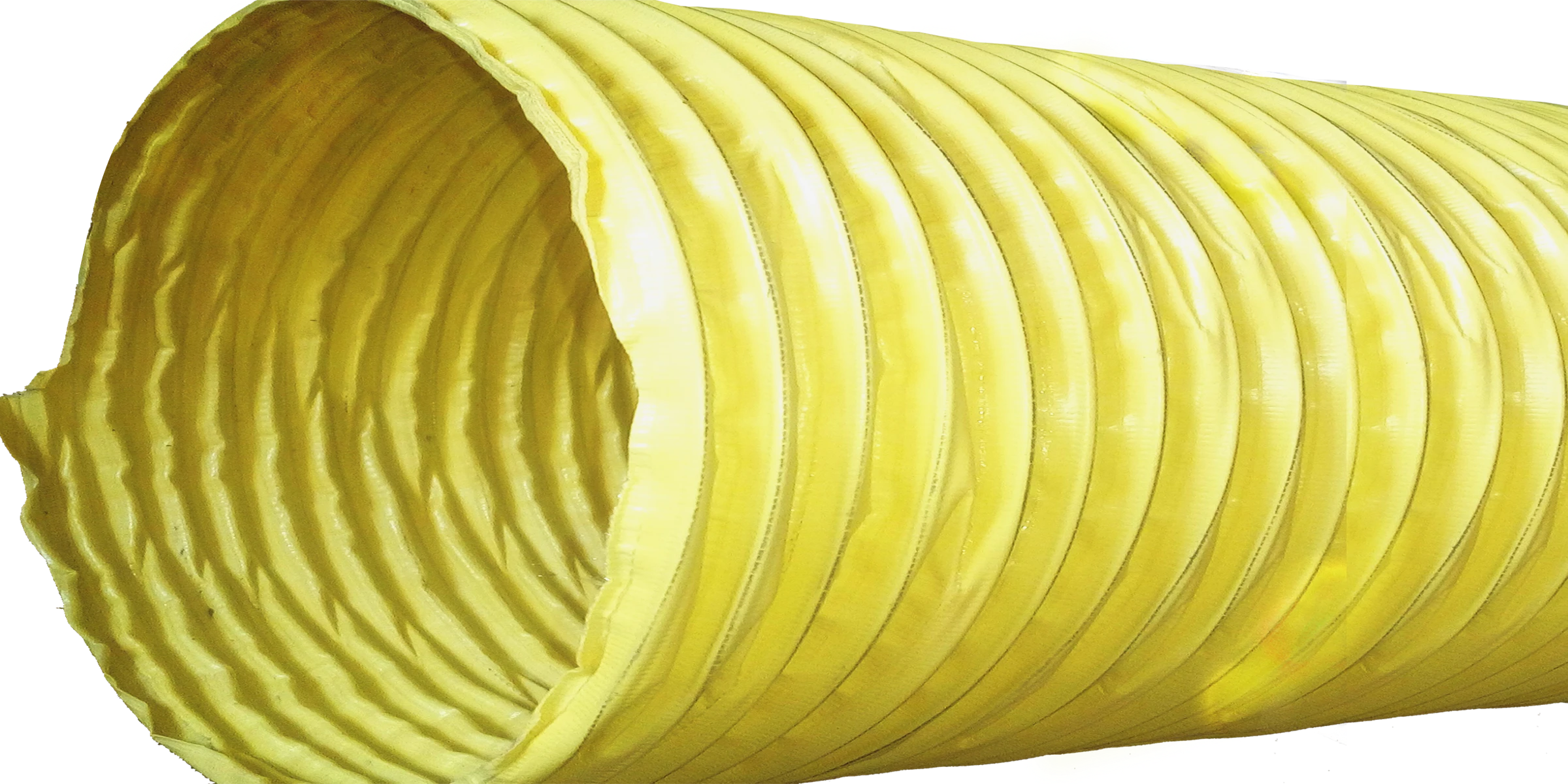

Yellow – Flame Retardant
Features
These hoses are lightweight, collapsible, and easy to handle, ideal for temporary or permanent ducting installations. Their resistance to abrasion, chemicals, and weather makes them reliable for both indoor and outdoor applications.
Wall Thick
0.5 mm
Standard Length
10 Meters
Compression Ratio
10:1.2
Applications
Fabric hoses are designed for air intake and blowing applications. They serve as highly flexible and durable duct hoses suitable for a wide range of industrial uses, including:
- Blowers and Portable Evacuators
- Industrial and Commercial Fans
- Fume and Smoke Extraction Systems
- Ventilation and Air Circulation
- Washing Machine Dryers and HVAC Systems
- Pollution Control Equipment
- General Industrial Air Movement and Exhaust
Range
Size Chart (Part 1)
| Inch | 2 | 2.5 | 3 | 3.25 | 3.5 | 4 | 4.5 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | 51 | 63 | 76 | 83 | 90 | 102 | 115 | 127 | 152 | 177 | 203 |
Size Chart (Part 2)
| Inch | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 | 20 | 22 | 24 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (mm) | 228 | 254 | 279 | 305 | 330 | 355 | 381 | 406 | 457 | 508 | 558 | 609 |
