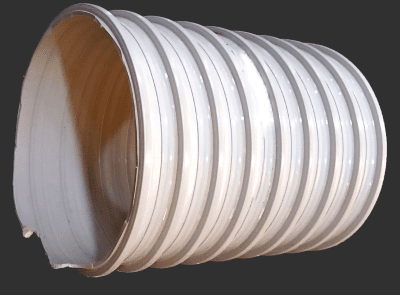

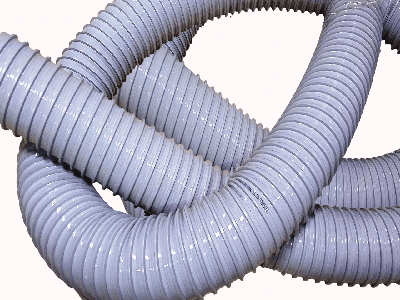

PVC DUCT HOSE - HEAVY DUTY
GREY / BLACK
Structure
Hose made of very heavy spiral reinforcement of rigid PVC on the outer surface of hose. Means outer surface will be corrugated and inner surface plain. Keeping a wall thickness of 2 mm. Made available in Grey / Black colours. A very heavy flexible hose for collection and conveying of air, dust and light materials. Quality PVC compounding and extrusion techniques have made the hose with better flexibility and service life then other commercial brands.
Temperature Range
60°C
Colour
Grey.
Can make in black colour
also against bulk orders.
APPLICATIONS
Well accepted hoses in Textile Machineries like OHTC (over head travelling cleaners), Carding and Drawing Machines, Comber, Blow Room, Auto Coner, Humidification Plants, Dust Collection Systems, Compact Spinning machines and also for various dust collection equipments with Spinning, Ginning, Twisting, Weaving, Dying, Cutting & Stitching and hosiery - Wood working industry - as dust collector hoses for Edge banders, CNC Routers and Engravers, Planners, Sanders, Panel saws - Warm air conveyance - fine dust and light non abrasive particle removal in asbestos and Fiberglass industries. Industrial vacuum cleaners and other floor care applications - material conveying in plastic processing machineries - rubber and chemical industries.
Technical Data
| Size (mm) | int (mm) | out (mm) | radius (mm) | Standard Length (m) |
|---|---|---|---|---|
| 50 | 50.8 | 57.2 | 65 | 30 |
| 65 | 63.5 | 71.5 | 75 | 30 |
| 75 | 76.2 | 83.5 | 95 | 30 |
| 80 | 80 | 89 | 100 | 30 |
| 90 | 90 | 99 | 110 | 30 |
| 100 | 101.2 | 108.9 | 125 | 30 |
| 110 | 110 | 122 | 125 | 30 |
| 125 | 127 | 135.2 | 140 | 15 |
| 140 | 140 | 150 | 150 | 15 |
| 150 | 152.4 | 161.1 | 205 | 15 |
| 163 | 160 | 172 | 210 | 15 |
| 200 | 204 | 214.4 | 270 | 15 |
| 225 | 225" | 239 | 350 | 15 |
| 250 | 254 | 265 | 370 | 10 |
| 300 | 305 | 320 | 370 | 10 |
| 315 | 315 | 332 | 500 | 10 |
