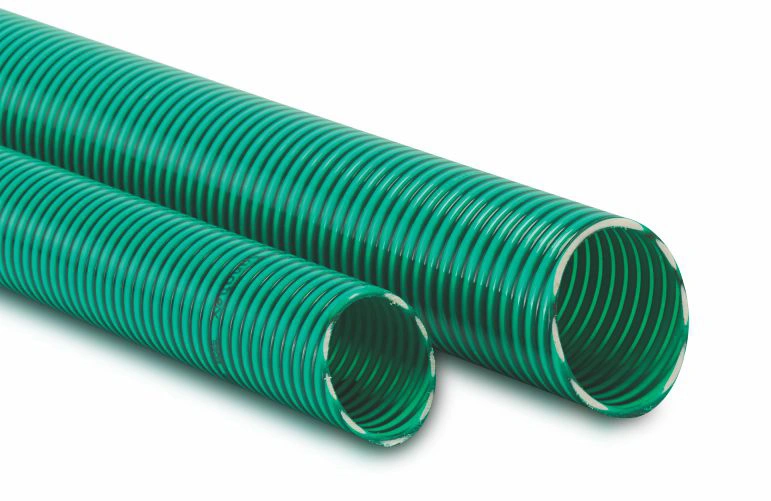

PVC SUCTION & DELIVERY – MEDIUM DUTY
Structure
Hose manufactured with a rigid PVC spiral reinforcement embedded in fine-grade soft PVC. This high-performance suction hose is engineered to maintain its flexibility for multiple seasons while offering excellent resistance to ozone, chemicals, and impact.
Formulated using premium-quality PVC compounds with carefully selected plasticizers, chemicals, and additives, and produced through advanced processing techniques, this hose delivers superior performance compared to many commercial alternatives available in the market.
When a high-quality PVC hose can provide long-lasting service for years, choosing lower-cost alternatives that require replacement every season only leads to unnecessary recurring expenses. Investing in quality ensures durability, reliability, and long-term value.
Temperature range
60°C / 70°C
Colour
Green
Pressure at 30°C
Working Pressure 3.5kg/cm² to 7kg/cm²
Bursting Pressure 11kg/cm² to 24kg/cm²
Applications
Ideal for agricultural applications and for handling saline (sea) water, light acids, alkalies, and various chemicals (excluding solvents). Widely accepted across industrial sectors for transferring different types of fluids in textile, chemical, pharmaceutical, food processing, paper mills, sugar mills, as well as engineering and construction industries.
A non-toxic (food-grade) variant is available upon request for handling milk, beverages, pharmaceutical products, and other food materials.
These hoses also serve as an ideal alternative for plastic granule suction in auto loaders where food-grade compliance is not required.
Food-grade transparent versions, with or without an antistatic copper wire, are available on request for handling food materials and for plastic granule transfer in auto loaders where static electricity must be eliminated by properly grounding the copper wire at both ends of the hose.
Spefications
- 📏 All technical data are subject to dimensional tolerances of ± 0.5%.
- 🌡️ All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances.
- ⚠️ Max. operating pressures apply only for short periods.
- 🔧 We reserve the right to make technical changes and color deviations.
- 📦 Other versions are available upon request.
