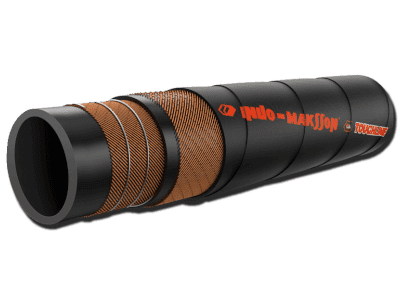

SLURRY SUCTION HOSE
Structure
- Inner Tube - Abrasion resistant natural rubber.
- Reinforcement - High tensile synthetic plies with helix wire and copper wire for grounding.
- Cover - Abrasion resistant natural rubber wrap finish.
Applications
Suction and discharge of bulk material like cement, gravel and sand etc in construction and slurry transportation in mining industry.
Temperature Range
-40 ℃ to +70 ℃
Technical Data
INDO - MAKSSON
| I.D. Ø (mm) | O.D. Ø (mm) | Working Pressure (bar) | Bursting Pressure (bar) | Bending Radius (mm) |
|---|---|---|---|---|
| 31 | 44 | 10 | 30 | 190 |
| 38 | 51 | 10 | 30 | 230 |
| 50 | 64 | 10 | 30 | 310 |
| 63 | 78 | 10 | 30 | 380 |
| 75 | 91 | 10 | 30 | 460 |
| 100 | 119 | 10 | 30 | 610 |
| 125 | 146 | 10 | 30 | 760 |
| 150 | 173 | 10 | 30 | 920 |
