NYLON & PTFE TUBES

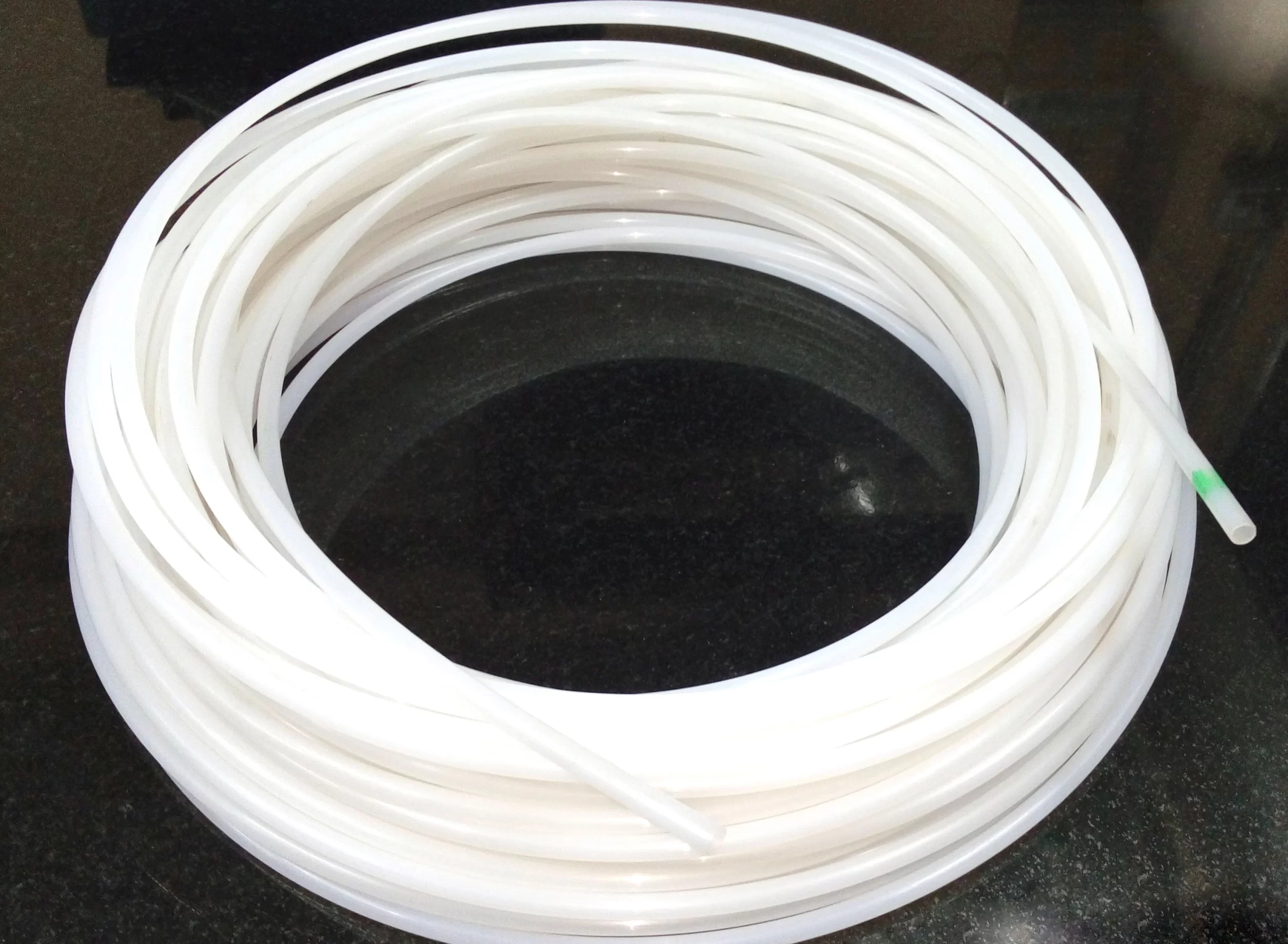

Nylon Tube
Structure
Features
- Hydrolysis resistant and good resistance to mineral oils
- Odorless and tasteless
- Anti-adhesive and gas & liquid tight
- Very good low-temperature performance
- Very robust
- Free of softeners and halogens
Material
Nylon 12-6 grade
Temperature
-40°C to +80°C
Applications
Wire jacketing, pneumatic control systems, compressed air lines, hydraulic lines, air lines, food & beverage transfer, fuel & oil transfer, air braking systems in commercial vehicles, robotics, and motion technology applications.
Specifications

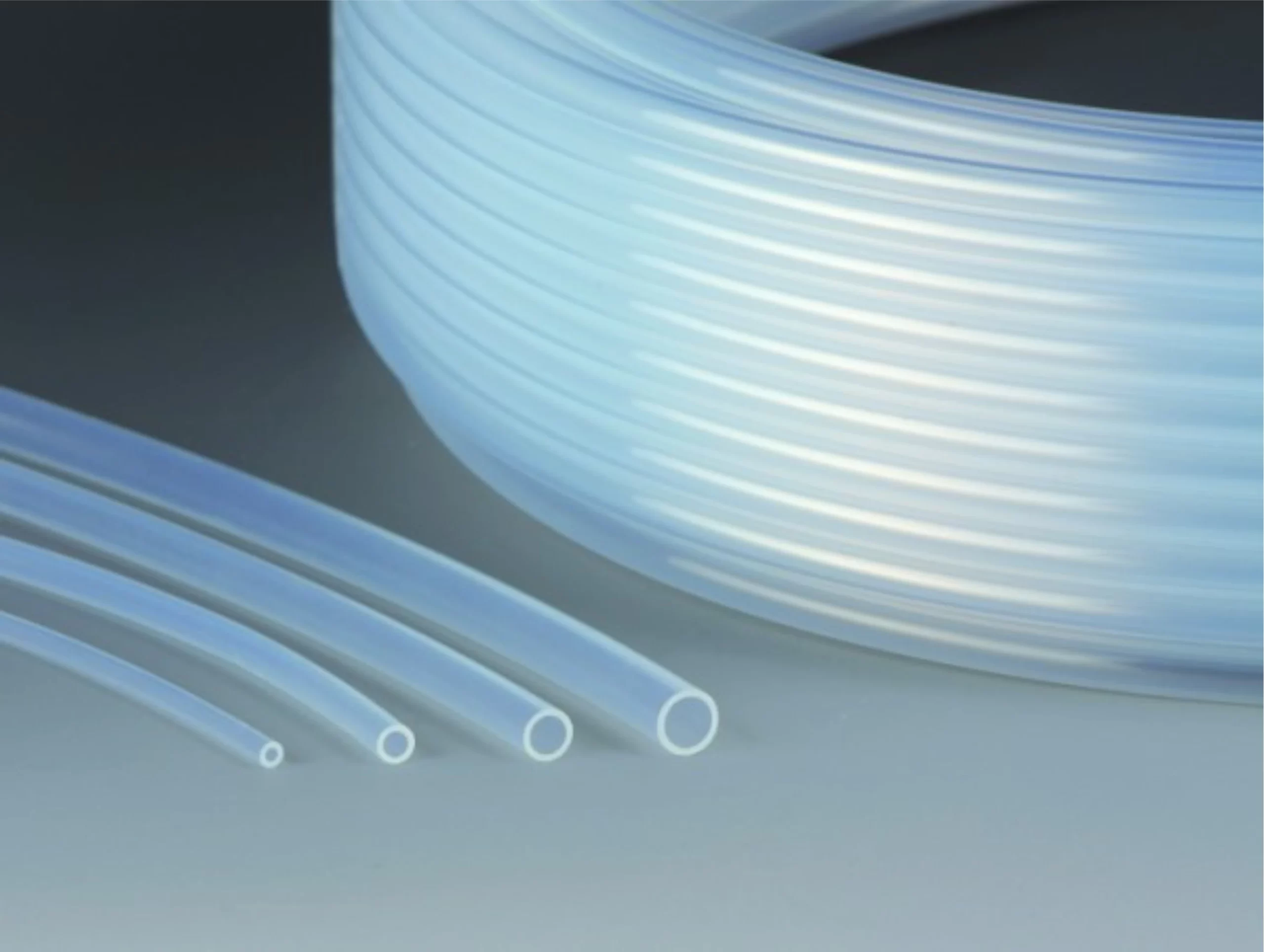

PTFE -Teflon Tube
Temperature
-180°C approx. to +260°C app.
Available Sizes
1 mm to 25 mm
Structure
PTFE Tubing (Polytetrafluoroethylene) is a transparent, chemically inert,
and non-toxic fluoropolymer tubing with excellent chemical resistance and a very smooth
surface that enables easy fluid flow. It is highly flexible and commonly used with
microfluidic fittings in low-pressure applications.
With a melting point of 327°C, PTFE tubing is suitable for high-temperature applications
up to 260°C (500°F). It also resists melt-off from soldering irons, making it ideal for
electronics and electrical insulation due to its excellent dielectric properties.
PTFE tubing offers non-stick characteristics, allowing efficient transport of fluids with
minimal resistance. It is compatible with most industrial solvents, chemicals, and corrosive
materials, and can be steam sterilized without affecting its physical properties.
Typically translucent white, PTFE tubing may vary slightly in appearance depending on wall
thickness and production lot. Colored PTFE tubing is also available on request for easier
system identification and routing.
Applications
Aerospace &Transportation Technology, Electronics, Components & Insulators, Chemical & Pharmaceutical Manufacturing, Food Processing, Environmental Sciences, Air Sampling, Fluid Transfer Devices and Water Processing Systems.
- ⚙All technical data are subject to dimensional tolerances of ± 0.5%.
- ⏱All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances.
Max. operating pressures apply only for short periods.
We reserve the right to make technical changes and color deviations.
Other versions are available upon request
