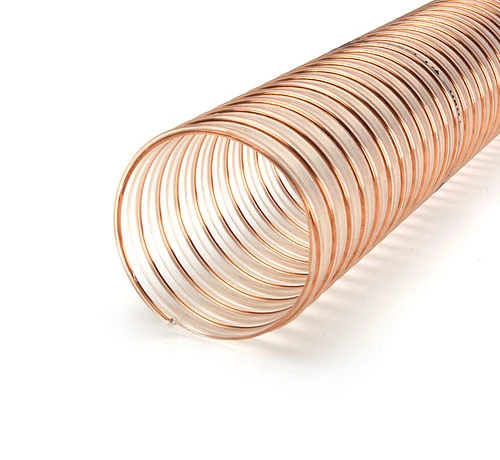

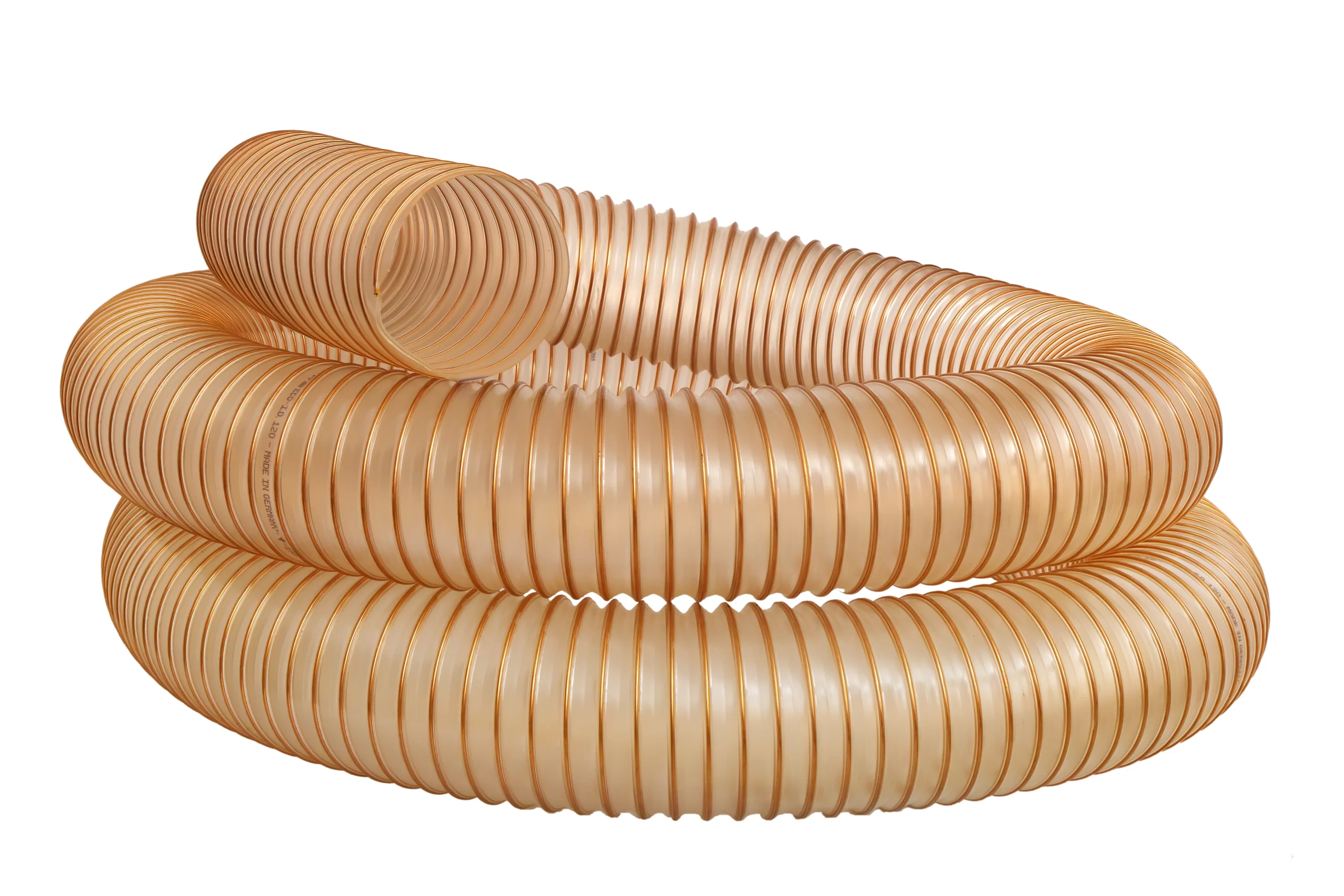

PU HOSE ECO 14C
Structure
Wall made of highly abrasion resistant Polyether – Polyurethane – as microbes and hydrolysis resistant version (wall thickness between the spirals 1.4 mm),copper-plated spring steel spiral embedded into the wall.
Characteristics
Very smooth bore, good abrasion resistance, resistant to oil and petrol, non toxic, free of halogen and softeners, resistant to hydrolysis and microbes. ECO friendly Acc. to TRGS 727 and ATEX 2014/34 EU, with earthing at both ends of the spiral for nonflammable dusts and bulks solids in Zone 22. Gases and liquids with low conductivity of electrostatic charges in Zone 2
Temperature range
-40°C to + 90°C (short-term up to + 125°C)
Applications
Suction and conveying of abrasive particles and granules
Specials
Also available as Flame Retardant Permantly Antistatic versions.
Colour
Transparent
Specification
- 🌡️ All technical data are subject to dimensional tolerances of ± 0.5%.
- 📏 All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances. Max. operating pressures apply only for short periods. We reserve the right to make technical changes and color deviations.
- 📐 Further diameters available upon bulk order request.
