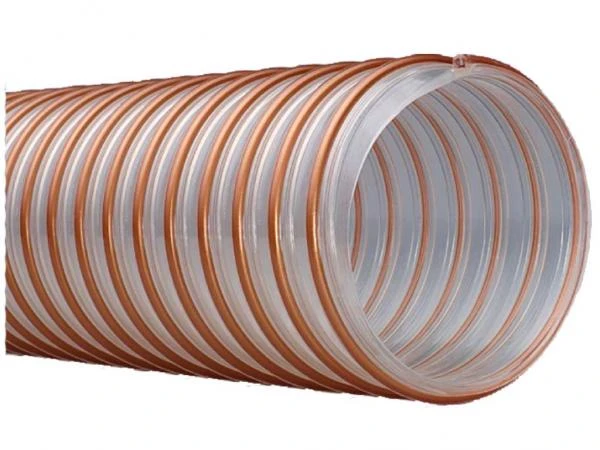

PU HOSE ECO 20C
Structure
Wall made of abrasion resistant Polyether – Polyurethane Excellent – as microbes and hydrolysis resistant version (wall thickness between the spirals 2 mm),copper-plated spring steel spiral embedded into the wall.
Characteristics
Very smooth bore, Excellent abrasion and vacuum resistance, good resistant to oil and petrol, non toxic, good flexibility resistant to hydrolysis and microbes, ECO friendly Acc. to TRGS 727 and ATEX 2014/34 EU, with earthing at both ends of the spiral for nonflammable dusts and bulks solids in Zone 22. Gases and liquids with low conductivity of electrostatic charges in Zone 2
Temperature range
-40°C to + 90°C (short-term up to + 125°C)
Colour
Transparent
Applications
Suction and conveying of abrasive particles and granules
Specials
Also available as FDA Food Grade versions.
Specification
⚠️ All These sizes are not in our ready stocks. Can be arranged on bulk orders.
🌡️All technical data are subject to dimensional tolerances of ± 0.5%.
📏All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances.
Max.operating pressures apply only for short periods. We reserve the right to make technical changes and color deviations.
Other versions are available upon request.
- 📐Further diameters upon Bulk order request.
