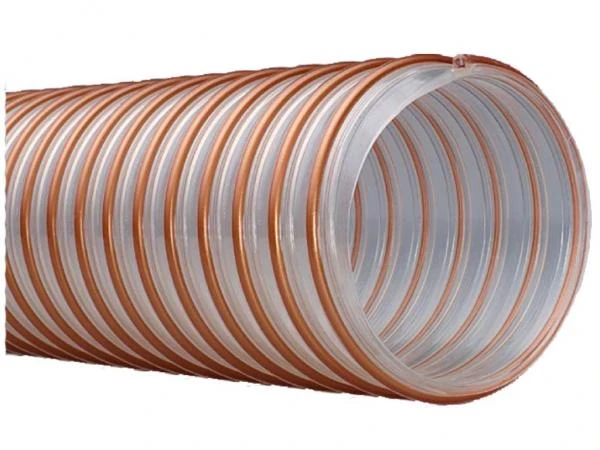

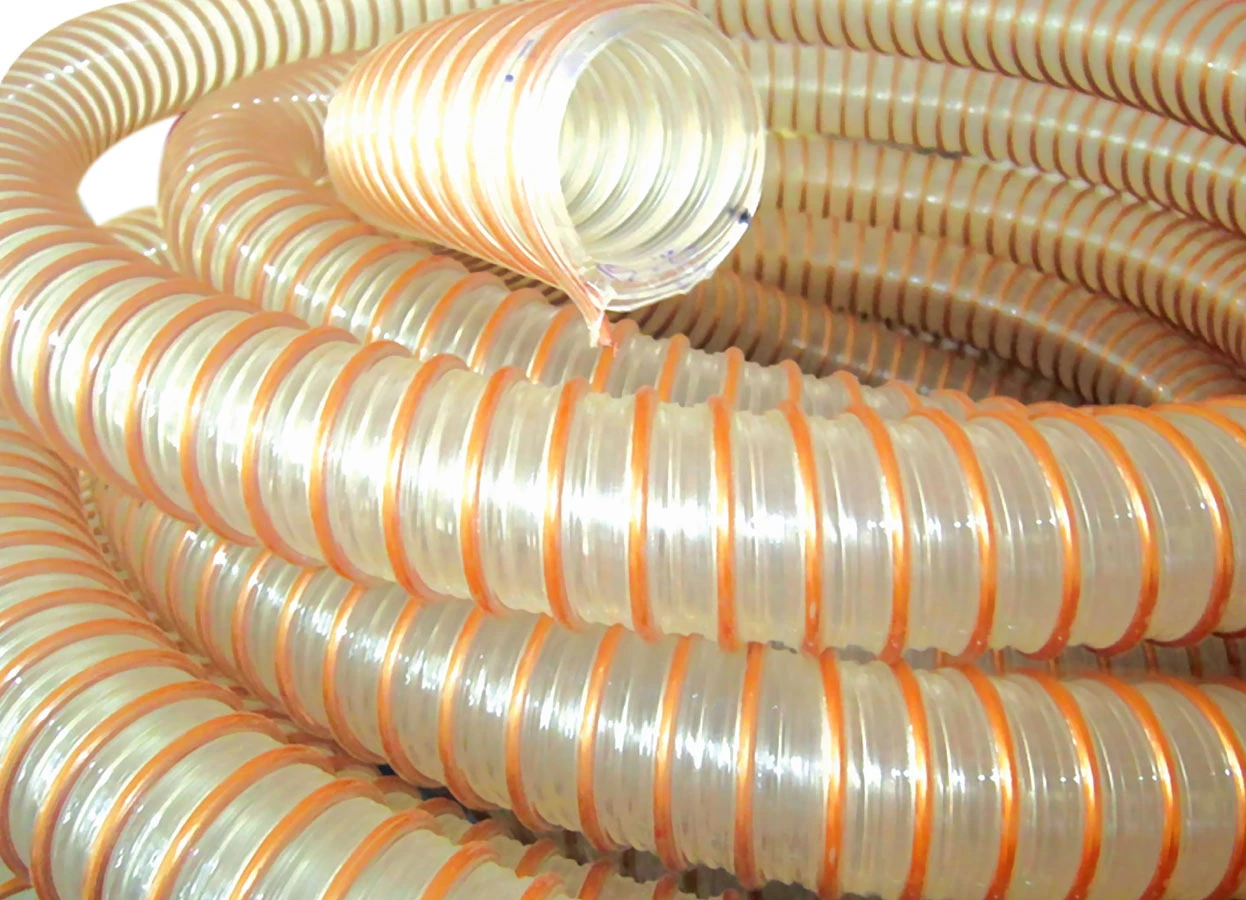

PU HOSE ECO 25C
Characteristics
Excellent abrasion and vacuum resistance, good resistance to oil and petrol fumes, non toxic, very smooth bore, good flexibility, resistant to hydrolysis and microbes, ECO friendly Acc. to TRGS 727 and ATEX 2014/34 EU, with earthing at both ends of the spiral for nonflammable dusts and bulks solids in Zone 22. Gases and liquids with low conductivity of electrostatic charges in Zone 2
Temperature range
-40°C to + 90°C (short-term up to + 125°C)
Applications
Any plastic, polymer, rubber, chemical, food and pharmaceutical industry for material handling – for
auto loader (vacuum hopper loaders) for any of the auxiliary machines like mixers, dozers, pulverizers,
feeders, dryers, injection molding machines and extruders. However for HOT PET Material / Glass
filled material conveying where the processing (drying) temperature is very high
(Temp. 120 to 180°C) you may use the following.
- Heat Resistant PU (HT-PU) Hose – Temperature: 145°C / 160°C
- Rigid Lined Silicon Hose (Wall Thickness: 3 mm) – Red Colour – Temperature: 200°C
Specials
Also available as Flame Retardant
Permantly Antistatic
Specification
🌡️ All technical data are subject to dimensional tolerances of ± 0.5%.
📏 All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances. Max. operating pressures apply only for short periods. We reserve the right to make technical changes and color deviations.
- 📐 Further diameters available upon bulk order request.
