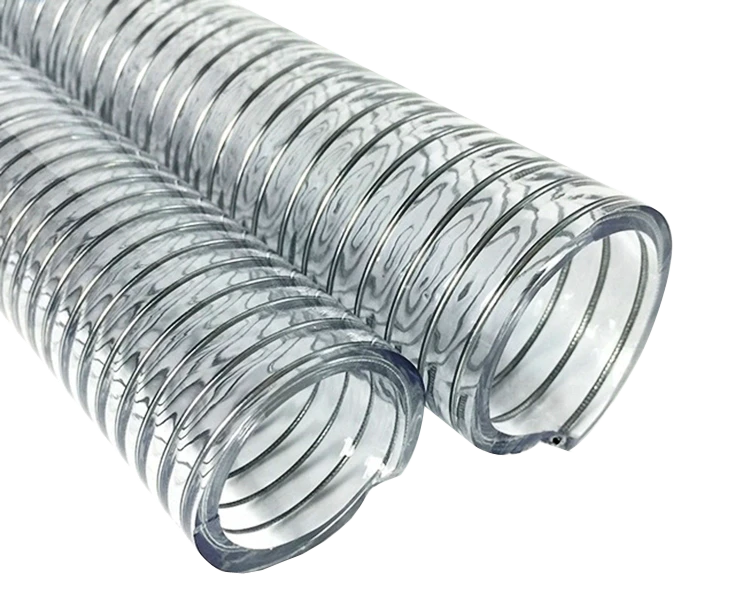

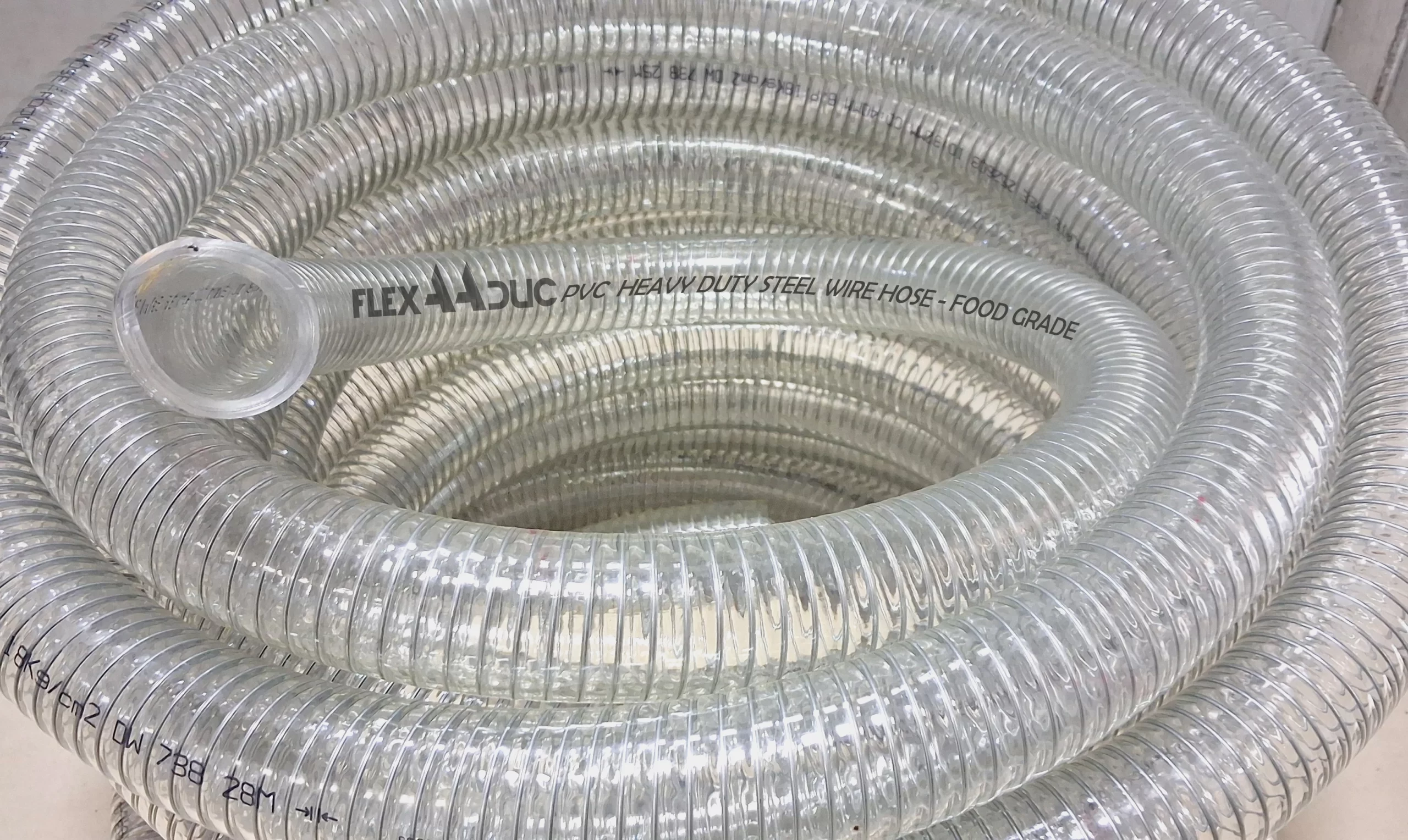

PVC STEEL WIRE VACUM HOSE
Structure
The hose is made of transparent soft PVC with an embedded spiral
steel wire for enhanced strength and anti-static properties. It features
a smooth inner and outer surface, offering high flexibility, toughness,
and excellent resistance to vacuum and compression. The hose is
designed with high axial strength.
Material
Non Toxic / Food Grade
Temperature range
-5℃ to +65℃
Colour
Grey / Transparent / Blue
Applications
Vacuum lines of auto loaders in plastic processing and dust collectors Transportation of resin and granules in the plastic industry Conveying low-temperature food-grade materials and fluids in
food processing and pharmaceutical industries
Draining sewage and water
Used as oil drain lines for machinery
Specifications
- 📐All technical data are subject to dimensional tolerances of ± 0.5%.
- 🌡️All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances. Max. operating pressures apply only for short periods. We reserve the right to make technical changes and color deviations. Other versions are available upon request.
