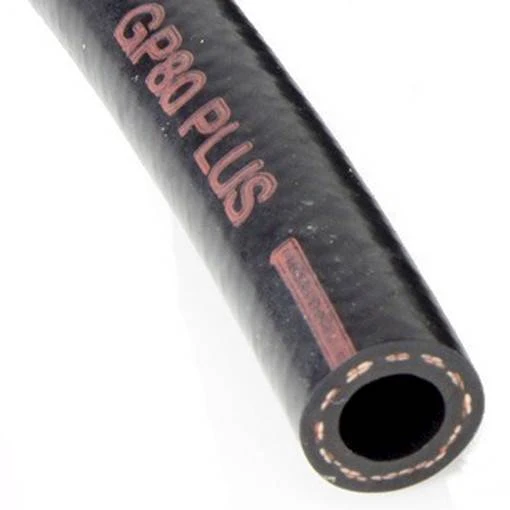

STATIC CONDUCTIVE HOSE
Structure
Inner Tube: NBR (Nitrile).
Reinforcement: One or two braids of high tensile synthetic yarn.
Cover: Specially compounded highly abrasion-resistant nitrile rubber for size 12.5 & 20.0 mm – Black.
Highly abrasion-resistant modified natural rubber for size 25.0 mm – Black.
Temperature range
-45°C to +95°C app.
Applications
industrial applications like Oil, Alcohol, Aqueous solution, Hydraulic Fluid, Acids, Detergent
and Chemical. Static conductive hose.
📏 All technical data are subject to dimensional tolerances of ± 0.5%.
🌡️ All technical data, measured at 23°C, are general orientation values and are subject to production-related tolerances. Max. operating pressures apply only for short periods.
We reserve the right to make technical changes and color deviations.
Other versions are available upon request.
